MMIC Products
VIPER RF has developed state-of-art MMICs for product sales and licensing. Our designs cover key functions for RF, microwave and mm-wave markets including aerospace, defense, and communications.
We access establised foundries, and our business model allows us to offer clients highly cost-effective MMICs which surpass the performance of incumbent solutions.
For examples of how our MMIC products have been beneficial to our clients, please see some of our Case Studies.
mmic amplifiers
Part  |
Description | Freq (GHz) |
Gain (dB) |
Pout (dBm) |
Eff (%) |
NF (dB) |
Control |
| VRFA0030-BD | Wideband MPA |
2-20 |
14.5 |
24 |
|
|
8V, 150mA |
| VRFA0031-BD | Wideband positive gain slope MPA |
2-20 |
15 |
24 |
|
|
8V, 150mA |
| VRFA0021-BD | Wideband MPA |
DC-45 |
12 |
15.5 |
|
|
8V, 50mA |
| VRFA0006-BD | WLAN, Dual Amp |
2.4/5 |
26.5/28 |
25 |
|
|
3.3V |
| VRFA0040-BD | 5-12GHz LNA |
5-12 |
25 |
15 |
|
<1.7 |
3.3V, 105mA |
| VRFA0035-BD | 6-18GHz LNA |
6-18 |
19 |
10 |
|
<2 |
3.3V, 75mA |
| VRFA0044-BD | C-Band 9W HPA |
7.25-8.5 |
23 |
39.5 |
45 |
|
8V, 2A |
| VRFA0041V2-BD | C-Band 15W HPA |
7.9-8.4 |
23 |
42 |
45 |
|
8V, 4.2A |
| VRFA0043V2-BD | X-Band HPA |
8.5-11 |
21 |
39.5 |
45 |
|
8V, 2.7A |

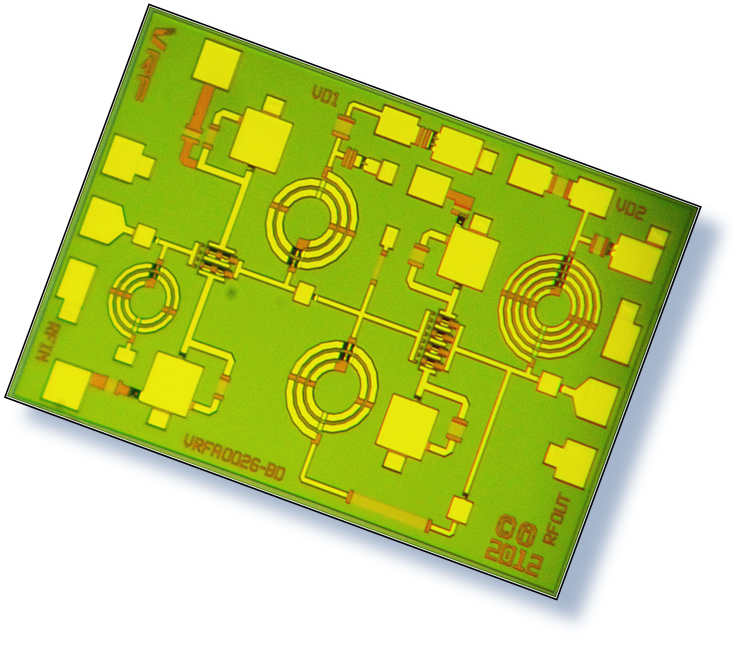

| VRFA0026-BD | X-Band LNA |
7-11 |
24.5 |
15 |
|
1.0 |
3V, 82mA |
| VRFA0026-QFN | X-Band LNA |
7-11 |
24.5 |
15 |
|
1.2 |
3V, 82mA |
| VRFA0028-BD | 10-16GHz LNA |
10-16 |
21 |
14 |
|
1.1 |
3V, 70mA |
| VRFA0039V1-BD | Ka-Band 5W HPA |
25-27 |
22 |
35 |
20 |
|
8V, 2.4A |
| VRFA0045V1-BD | Ka-Band Driver Amp |
25.5-27 |
25 |
25 |
|
|
8V, 350mA |
| VRF250DV7-BD | E-Band Gain Block |
71-76 |
17 |
17 |
|
|
4V |
| VRF250DV3-BD | E-Band Gain Block |
81-86 |
22 |
19 |
|
|
4V, 60mA |
| VRF450DV4-BD | E-Band MPA |
81-86 |
14 |
18.5 |
|
|
4V, 80mA |
| VRF850DV6-BD | E-Band HPA |
81-86 |
14 |
23 |
|
|
4V, 160mA |
| VRF250DV2-BD | W-Band Gain Block |
93-95 |
18 |
17 |
|
|
4V, 160mA |
| VRF450DV2-BD | W-Band MPA |
93-95 |
12 |
21.5 |
|
|
4V, 80mA |
| VRF850DV2-BD | W-Band HPA |
93-95 |
11 |
23.5 |
|
|
4V |
mmic attenuators
| Part |
Description |
Freq (GHz) |
Loss (dB) |
Range (dB) |
Control (V) |
| VRFC0007-BD | 4-Bit digital attenuator |
DC-13 |
2.7 |
7.5 |
0/-5 |
| VRFC0006-BD | 6-Bit digital attenuator |
DC-13 |
5.0 |
31.5 |
0/-5 |
| VRFC0009-01-BD | Wideband switch attenuator |
DC-20 |
1 |
|
0/-5 |
| VRFC0009-02-BD | Wideband switch attenuator |
DC-20 |
2 |
|
0/-5 |
| VRFC0009-04-BD | Wideband switch attenuator |
DC-20 |
4 |
|
0/-5 |
| VRFC0009-16-BD | Wideband switch attenuator |
DC-20 |
16 |
|
0/-5 |
mmic phase shifters
| Part |
Description |
Freq (GHz) |
Loss (dB) |
Range (deg) |
Control (V) |
| VRFC0008-BD | 6-Bit digital phase shifter |
2-4 |
7.5 |
360 |
0/-5 |
| VRFC0003-BD | 6-Bit digital phase shifter |
8-13 |
6 |
360 |
0/-5 |
| VRFC0011-5-BD | 1-Bit phase shifter |
2-6 |
0.7 |
5.625 |
0/-5 |
| VRFC0011-22-BD | 1-Bit phase shifter |
2-6 |
1.4 |
22.5 |
0/-5 |
| VRFC0010-45-BD | 1-Bit phase shifter |
8-15 |
1.1 |
45 |
0/-5 |
| VRFC0010-90-BD | 1-Bit phase shifter |
8-15 |
1.4 |
90 |
0/-5 |
| VRFC0010-180-BD | 1-Bit phase shifter |
8-15 |
1.6 |
180 |
0/-5 |
mmic switches
| Part |
Description |
Freq (GHz) |
Loss (dB) |
Isolation (dB) |
Control (V) |
| VRFS0008-BD | Wideband SPST switch |
DC-20 |
0.6 |
48 |
0/-5 |
| VRFS0002-BD | Wideband SPDT switch |
DC-20 |
1.18 |
47 |
0/-5 |
| VRFS0003-BD | Wideband SP4T switch |
DC-20 |
2.2 |
52 |
0/-5 |
